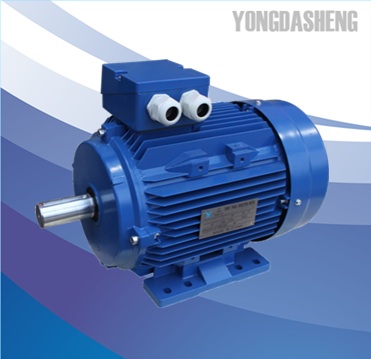

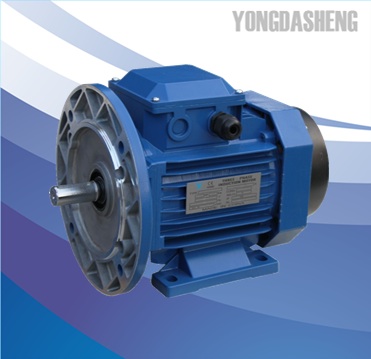

YDS3 series Premium Efficiency Induction Motor |
| YDS series are of the totally enclosed, three phase squirrel cage type, |
| built to comply with international IEC and EN standards. Motor conforming to other |
| national and international specifications are also available on request. |
| All production units are certified to ISO9001 international quality standard as well |
| ISO14000 environ-mental standard and confirm to all applicable EU Directives. |
| |
| Comply with IEC/EN Standard |
| IEC/EN 60034-1 |
| IEC 60072 |
| IEC/EN 60034-2-1 |
| IEC/EN 60034-5 |
| IEC/EN 60034-30 |
| IEC/EN 60034-6 |
| IEC 60034-8 |
| IEC/EN 60034-7 |
| IEC 60034-12 |
| IEC/EN 60034-9 |
| IEC 60034-14 |
| |
| Operating Conditions: |
| Ambient temperature: -15'C |
| Altitude: not exceed 1000m |
| Rated voltage: 380V ot any voltage between 220V - 760V |
| Rated frequency: 50/60Hz |
| Protection class: IP55 |
| Insulation class: F |
| Cooling method: IC141 |
| Duty: S1 (continuous) |
| Connection: Star-connection for below 3kW, delta-connection for 4kW and above |
