АИР series Three Phase Electric Motor
Fore more information
>CONTACT  YDS  NOW

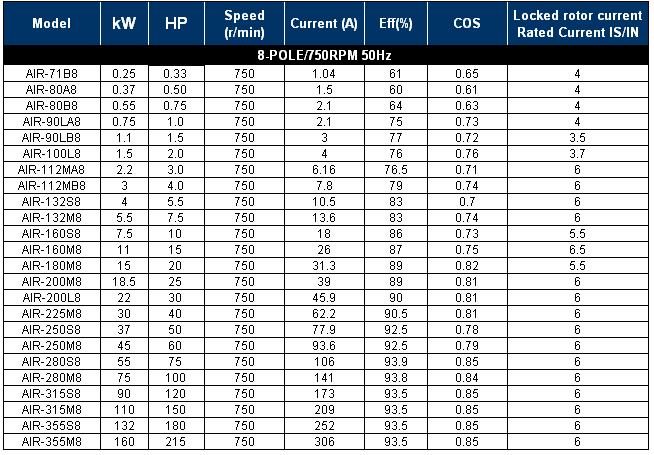

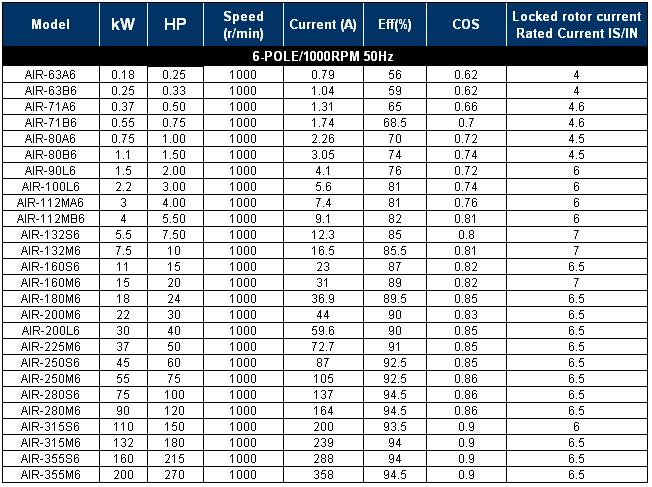

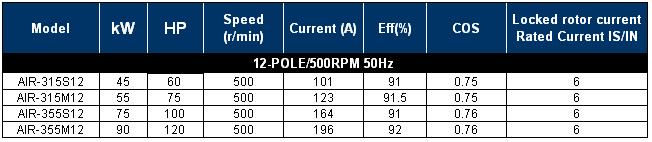

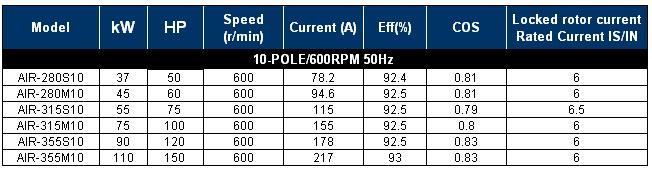

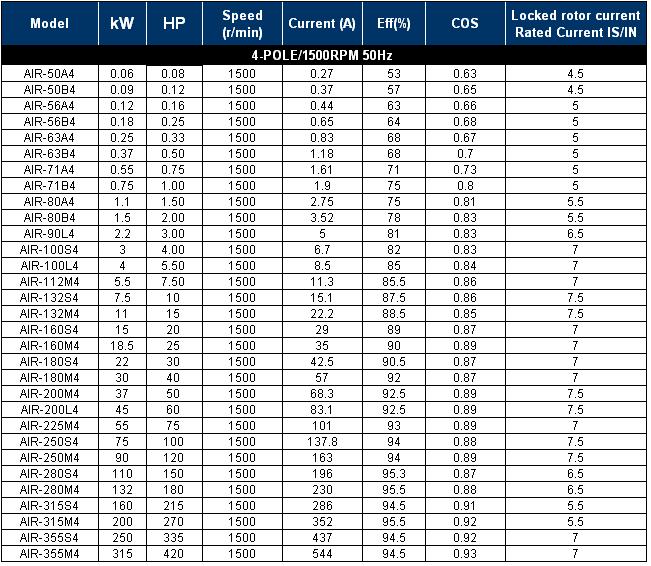

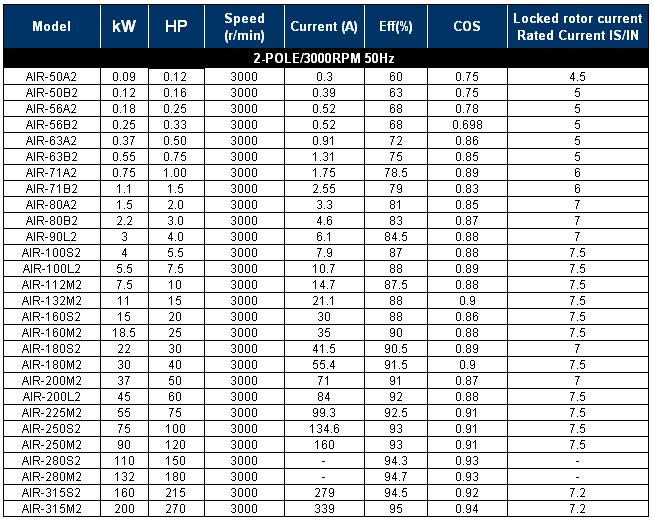

Technical Data Sheet
>DOWNLOAD  NOW

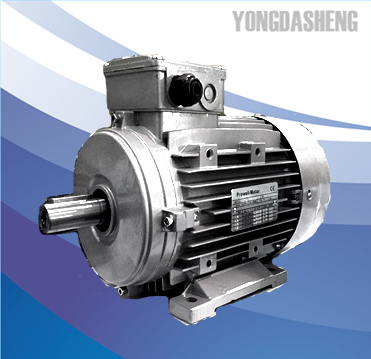

AIR series Three Phase Induction Motor
AIR series Three-phase induction motors are conformity with gost R51689-2000 standards,
it'sadvantages with good performance nice appearance light weight.

OPERATING CONDITIONS
Ambient temperature: -15'C
Altitude: not exceed 1000m
Rated voltage: 380V ot any voltage between 220V - 760V
Rated frequency: 50Hz 60Hz
Protection class: IP54, IP55
Insulation class: F
Cooling method: ICO141
Duty: S1 (continuous)
Connection: Star-connection for below 3kW, delta-connection for 4kW and above

This range of motors are made to GOST standards and incorporate many fine
features. These are superior motors that can be used in a multitude of
applications in the commercial industrial building service and water treatment
field where superior service quality and reliability is demanded.

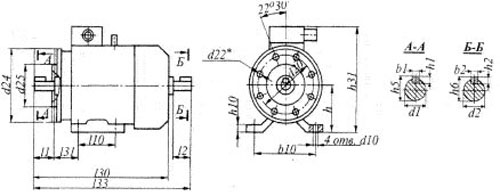

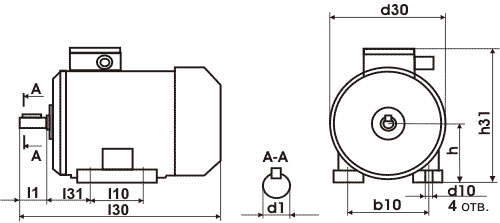

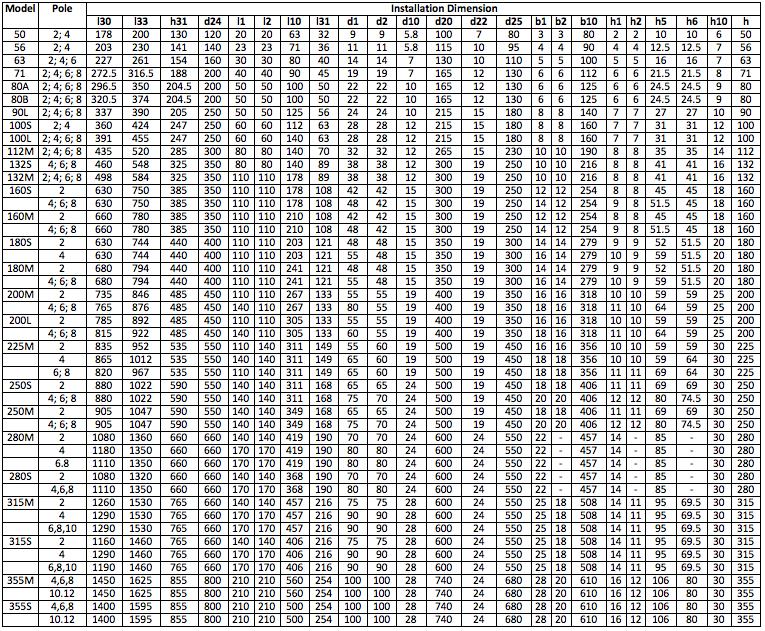

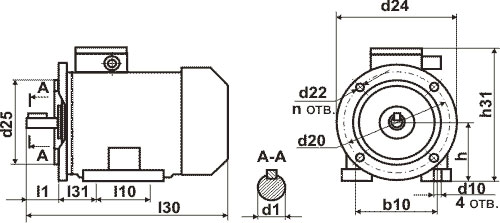

Installation Dimension
